Trolley


For this project, I created multiple subassemblies in Autodesk Inventor and then compiled them all into one assembly in order to create a Trolley that is able to slide along an I-beam. Having multiple subassemblies helps with ease of use and efficiency. It was one of the most complex assemblies I had created up to that point.



Demo image - red thumbnail

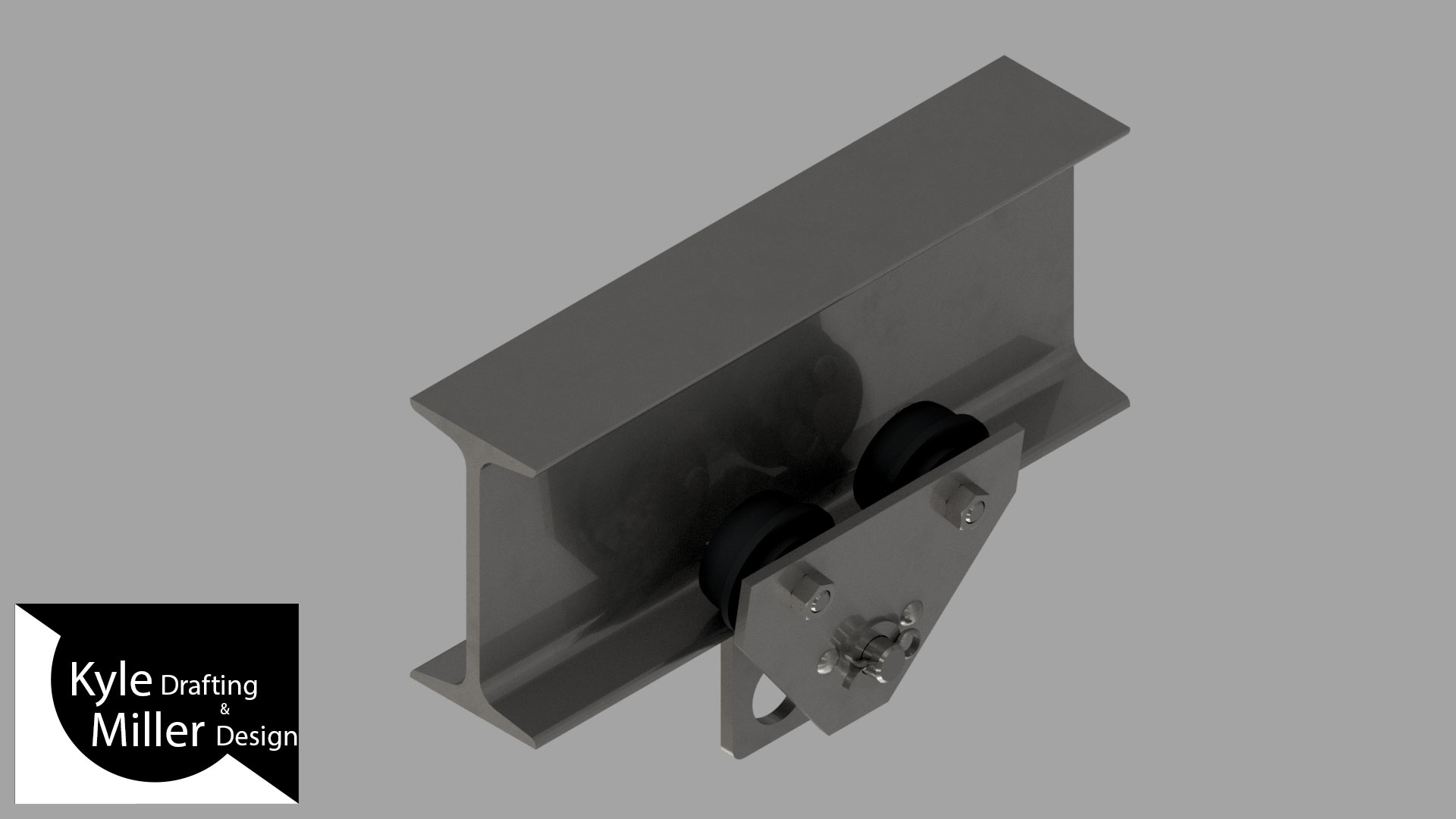

Trolley - Inventor
Demo image - white thumbnail

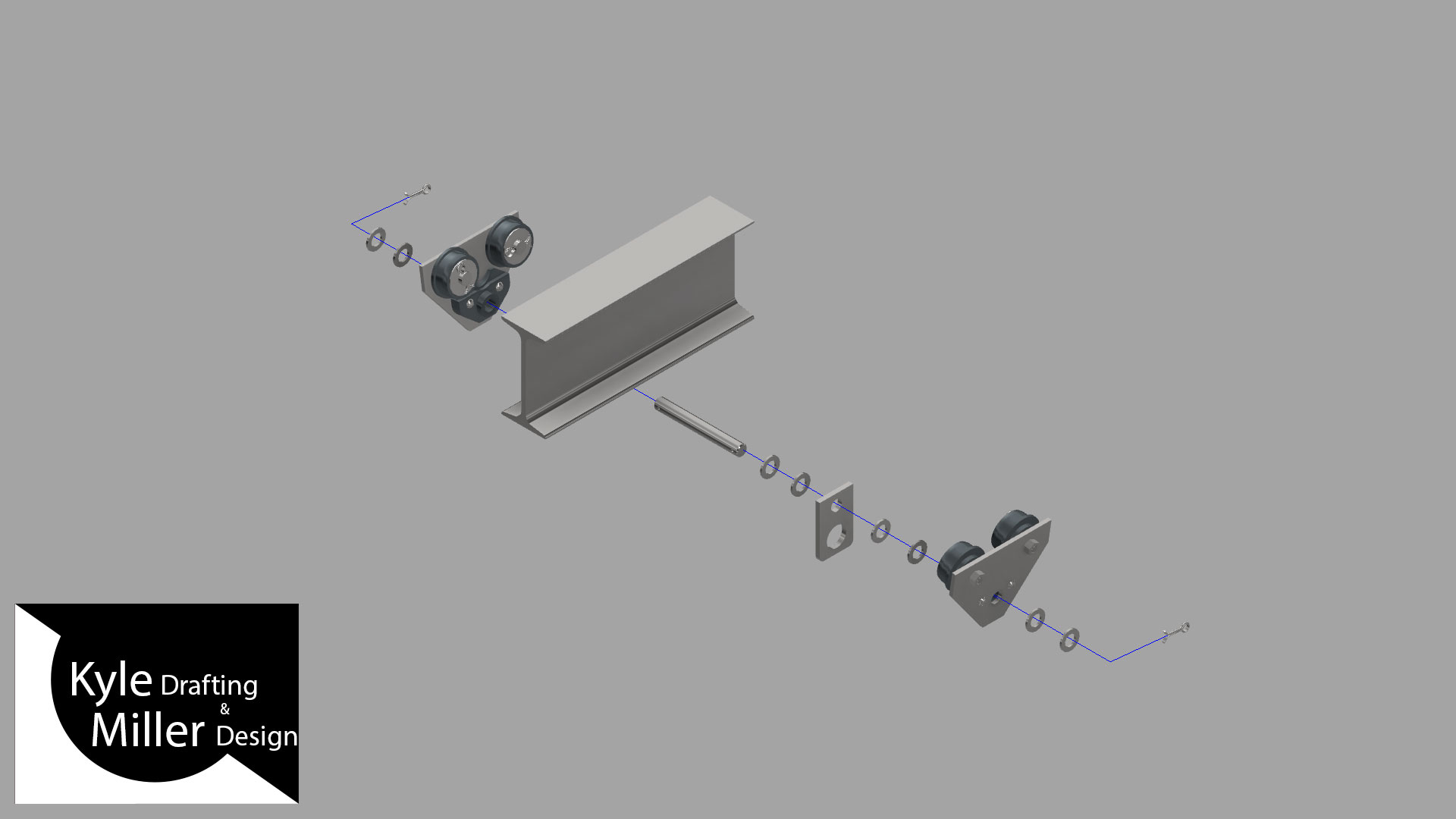

Trolley Exploded Assembly - Inventor

View Drawing Set
Demo image - blue thumbnail
Trolley ALT - Inventor
