AutoCAD/Inventor 9-51 Caster

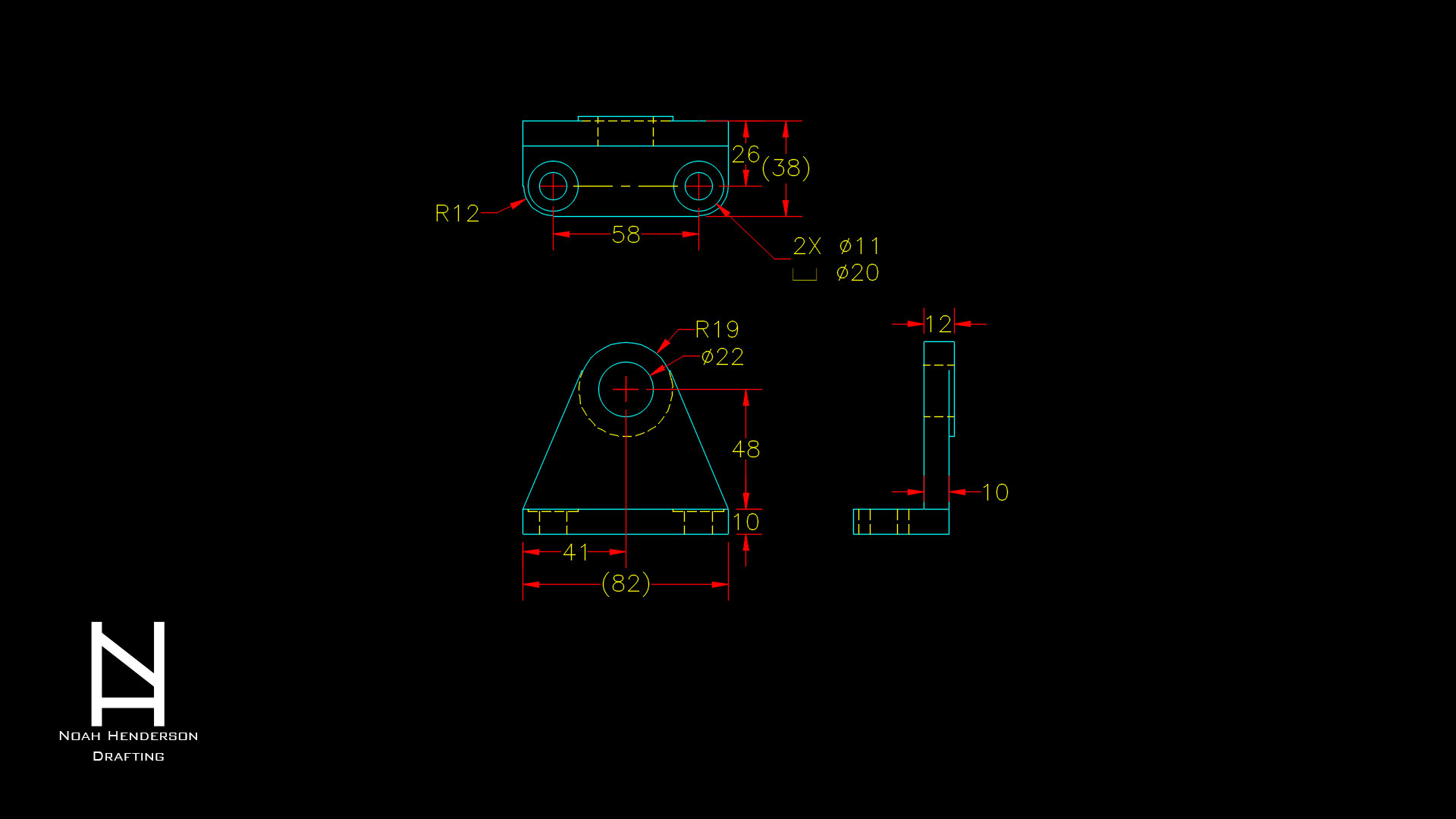

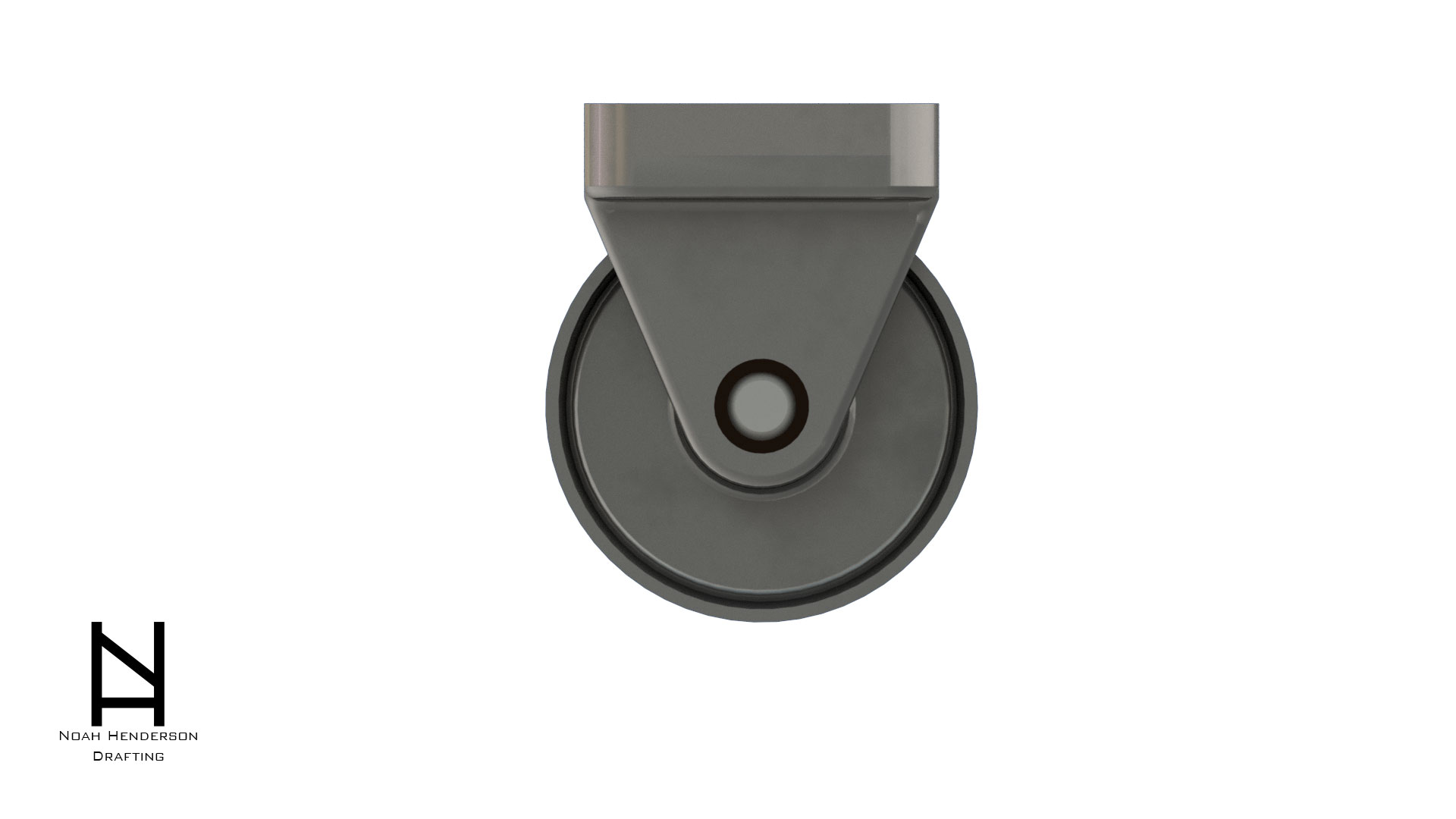

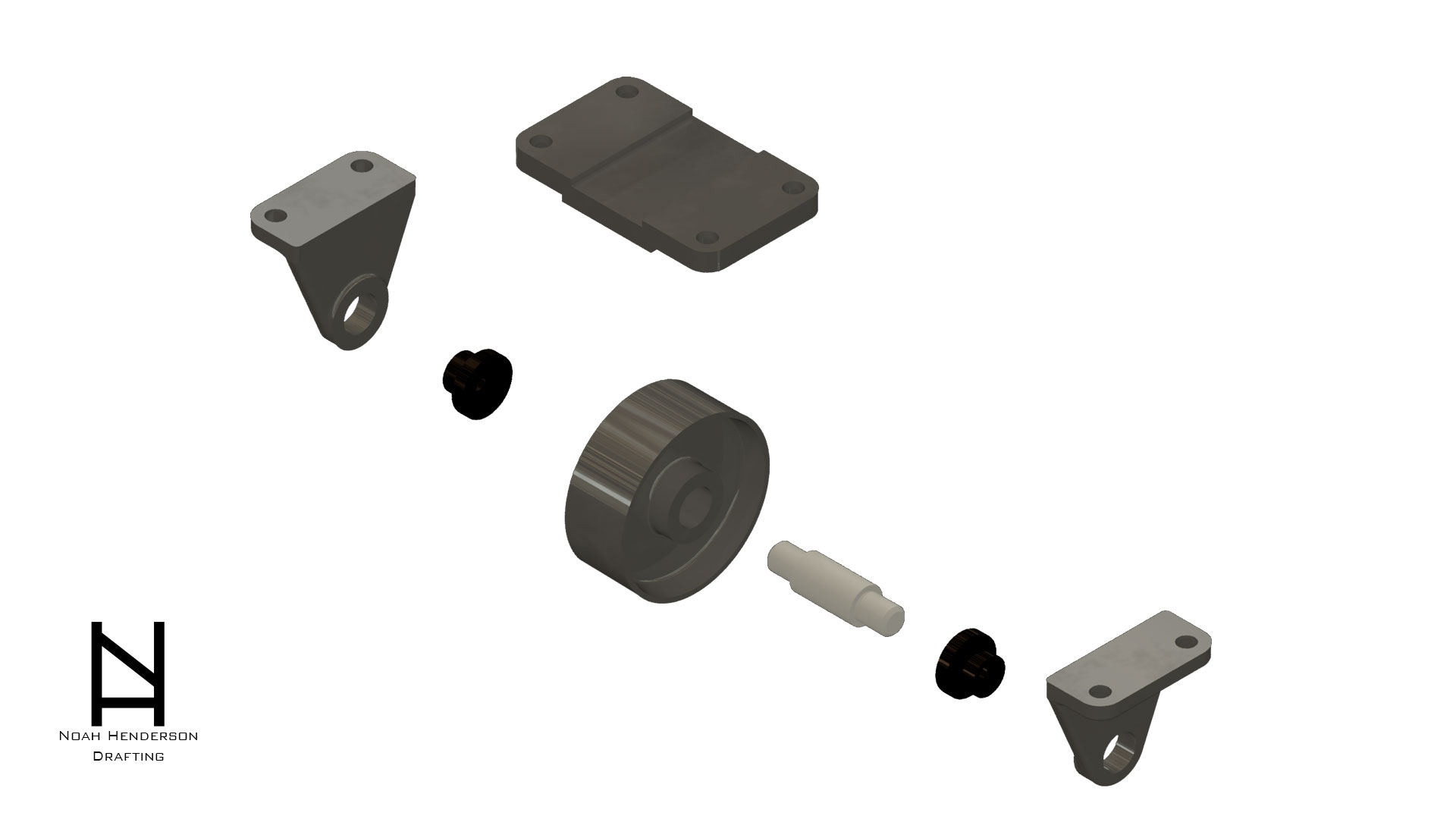

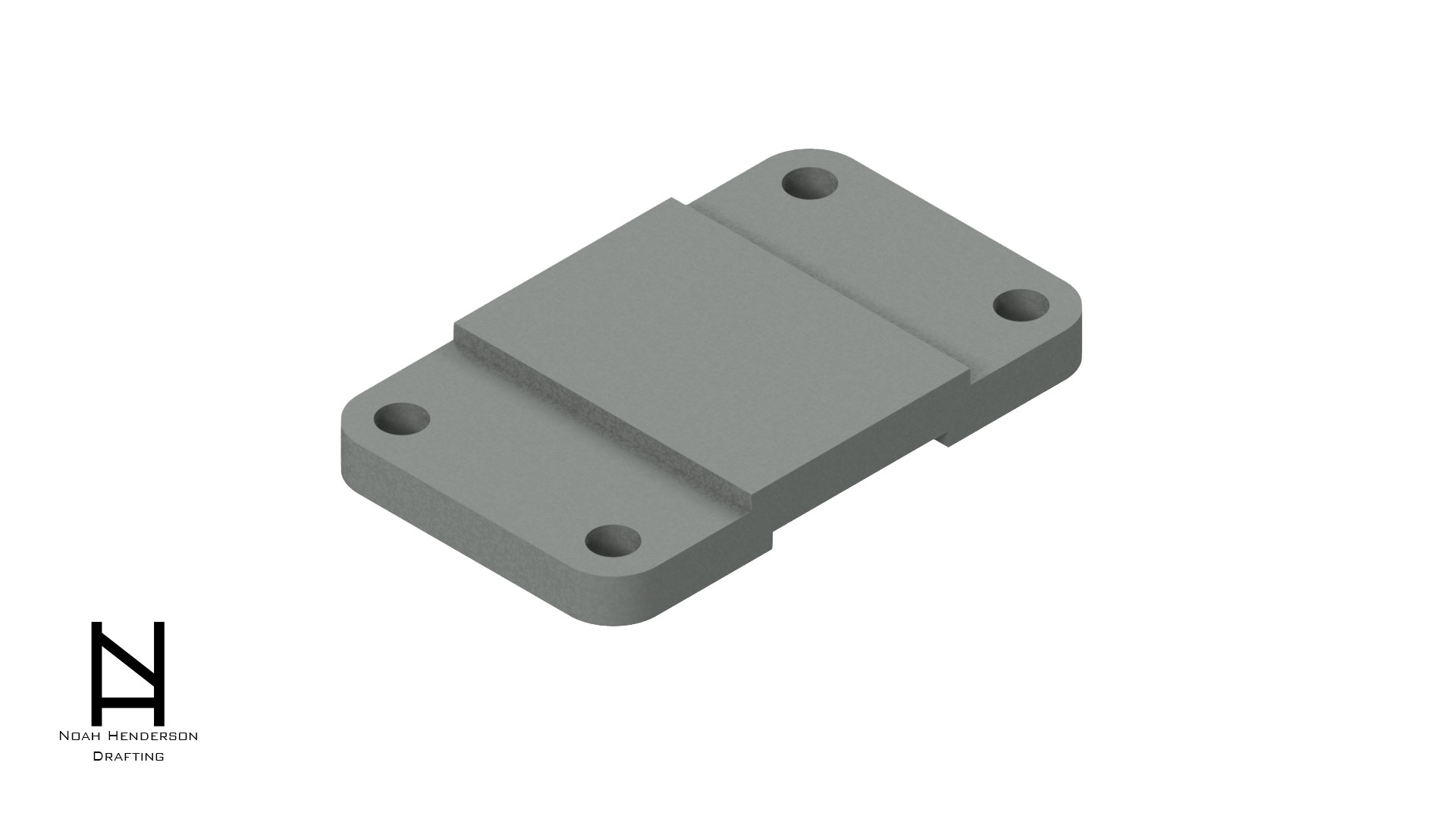

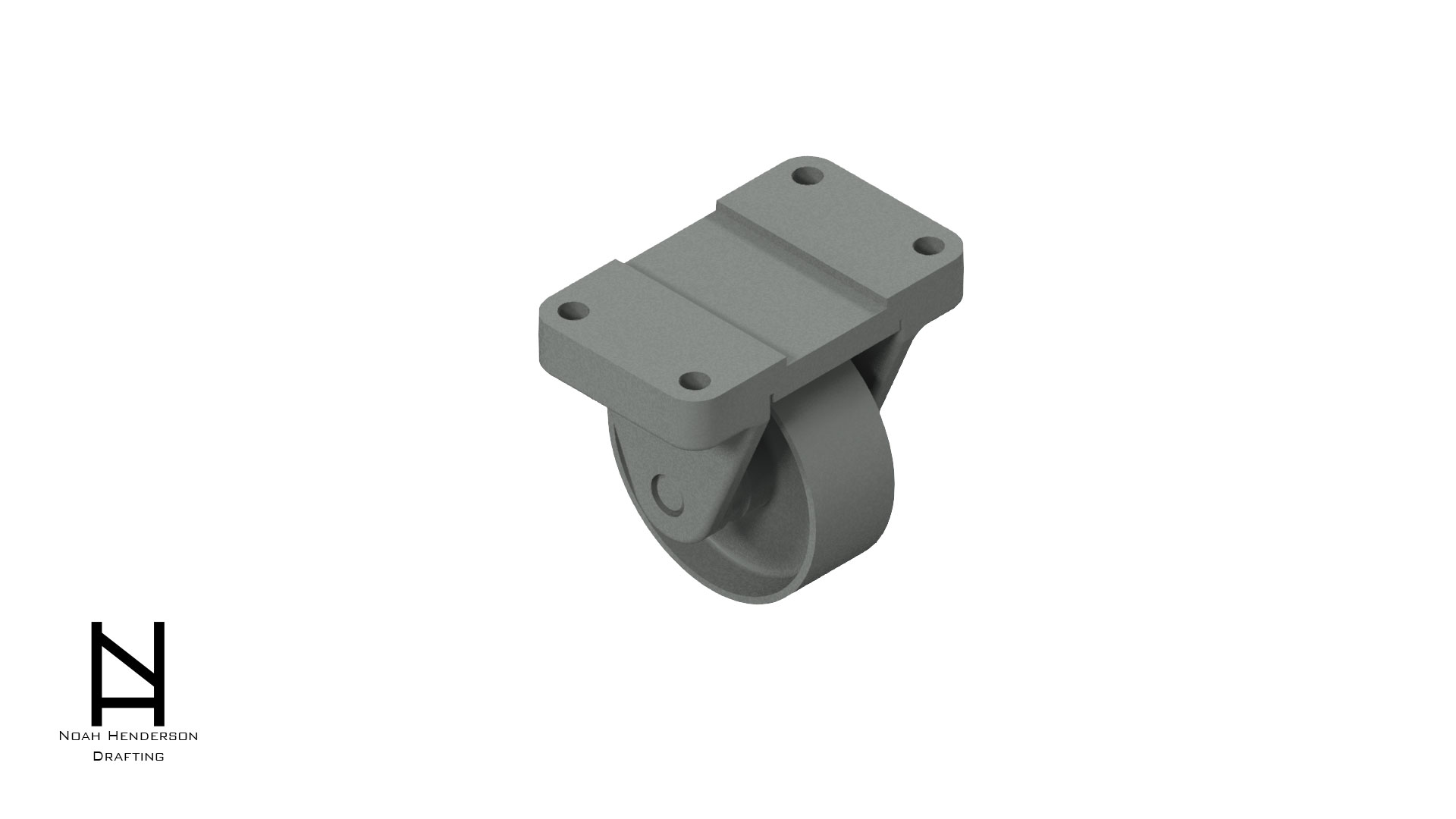

This assignment involved creating a drawing of a piece with multiple parts. This was the fist piece I created with multiple parts. In this assignment I learned about creating multiple objects and bring them together as assembly and then creating exploded views. This assignment was created in both AutoCAD (top) and Inventor (bottom).
|
|||||||||||||||
|
