The requirements for DDGT130's Project 1 were to create one single part with no movement. I decided that I would like to model an engagement ring, to eventually be 3D-printed in resin. The resin model will be used to create a real ring using the lost-wax method. Note: the gems included in these models are not part of the print and are strictly included for visualization and aesthetics.

Please explore more below:

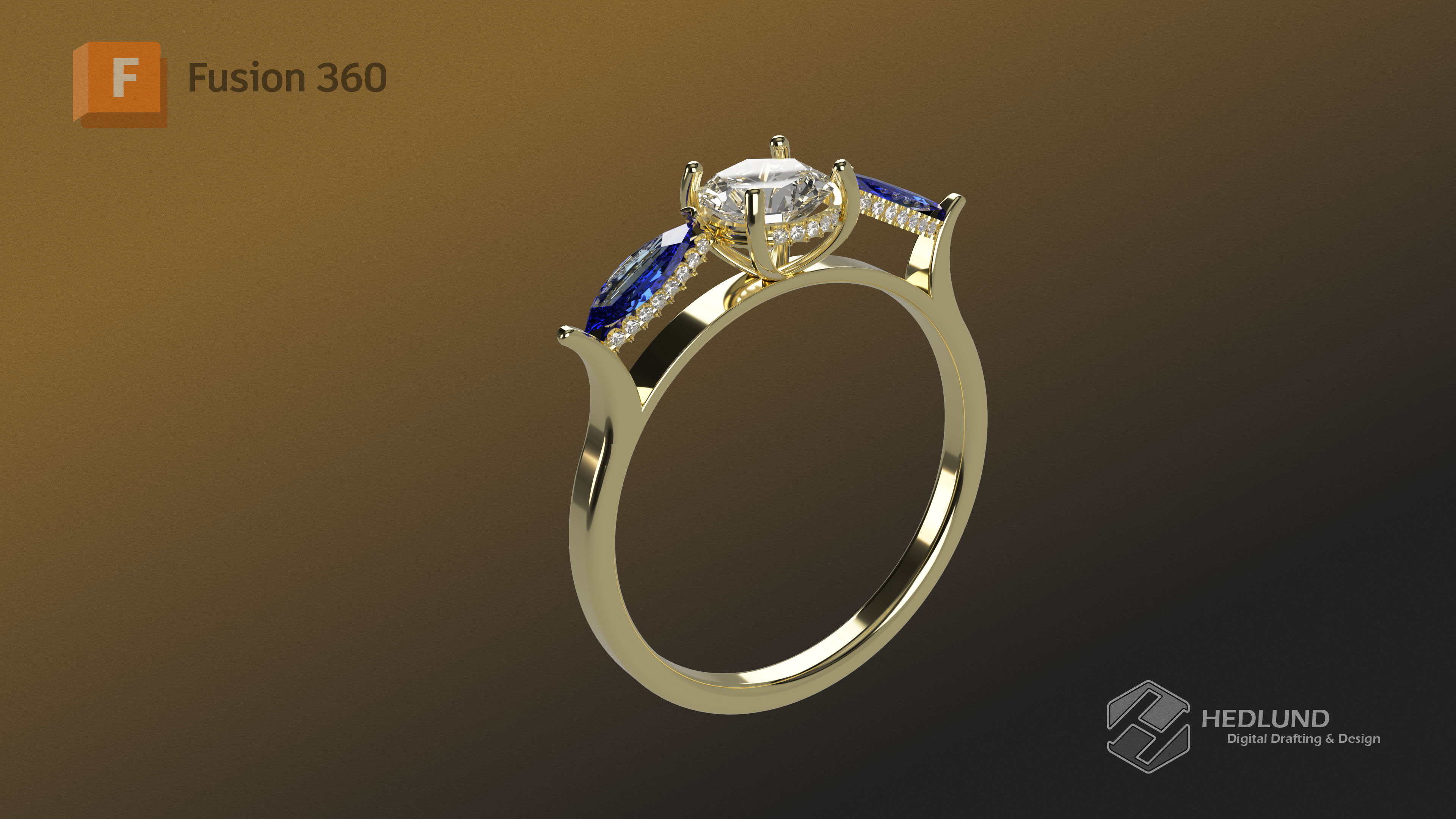

An image featuring a zoomed out full view of the engagement ring design.

Engagment Ring - View 1

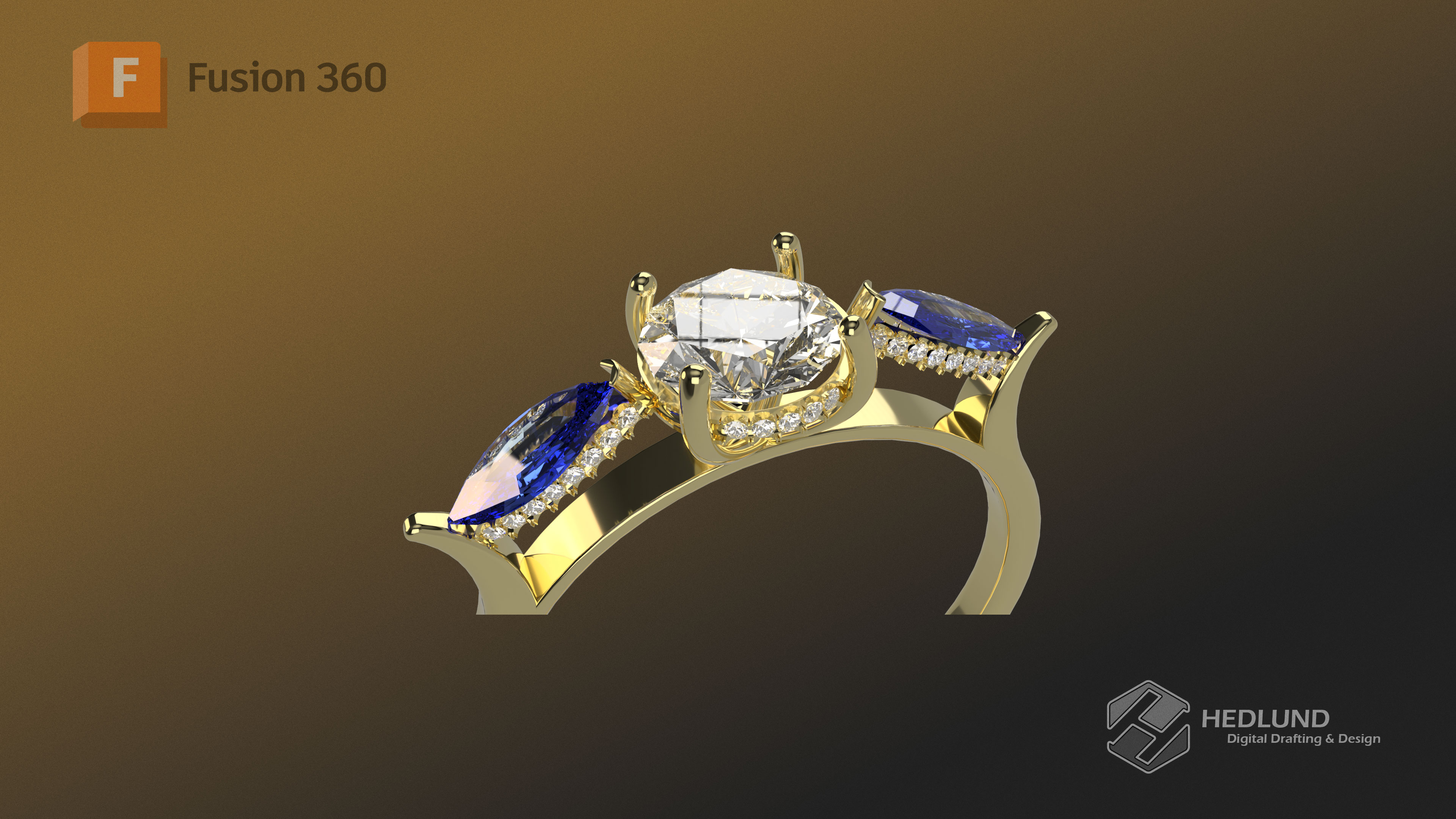

An image featuring a zoomed in view of the engagement ring.

Engagment Ring - View 2

An image indicating that a follow-up image featuring a resin print of the engagement ring is comming soon.

3D-Printed in Resin

Some other projects completed as a part of exploring ideas and techniques for the assignment:

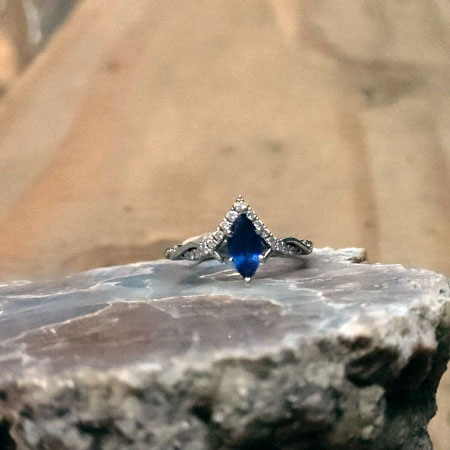

The first is a recreation of my own engagement ring. In this model I explored working with more challenging organic shapes. At this point I had not yet learned how to create the gem insets. I hope to update the model to reflect what I have learned since!

Engagement Ring - Recreation Subject

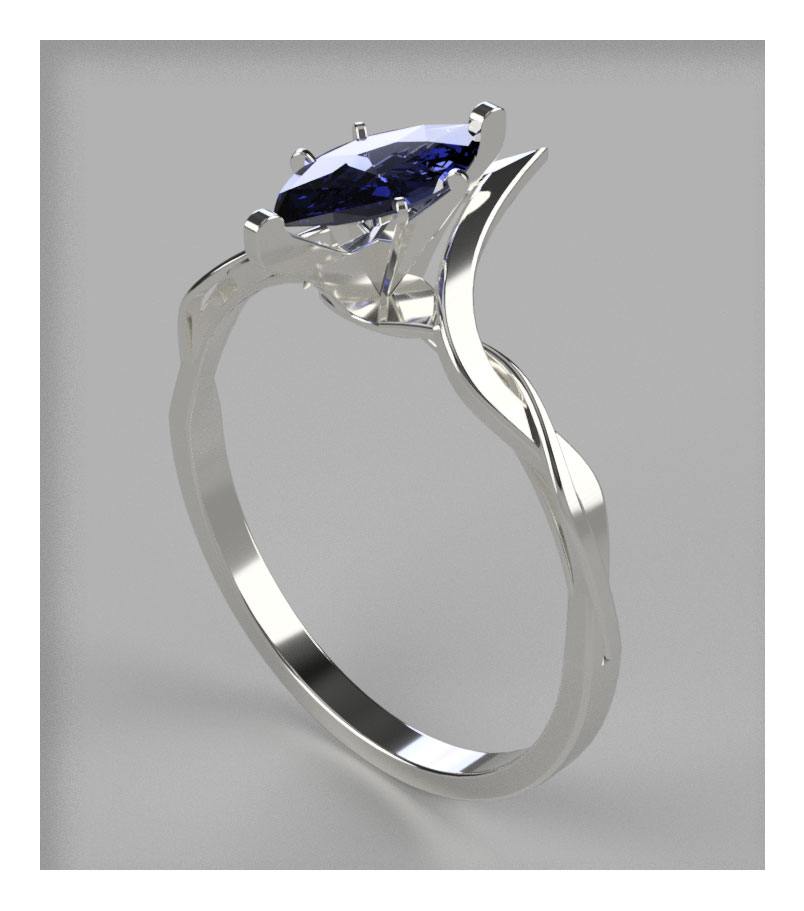

An image of the ring recreated in Fusion.

Engagement Ring - Recreated Model

And, another one:

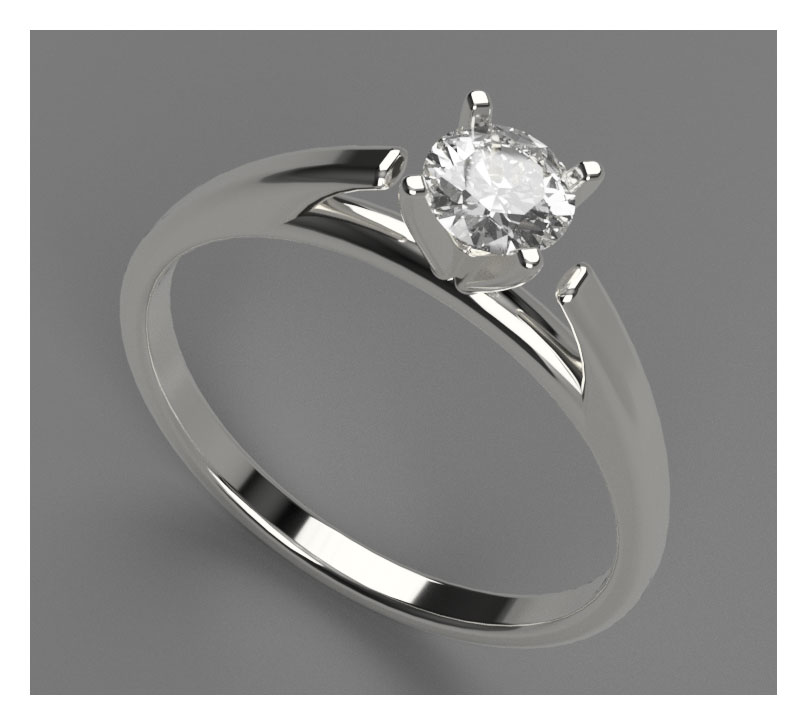

An image of another ring design, simpler than the one submitted for the project, but used for the learning process.

Engagement Ring - High-Profile Round Diamond
