This image features a page title, Connecter - Reverse Engineered, and a project description. The text is as follows: This project was done for the Spring DDGT 121 course at Napa Valley College, and was completed in AutoCAD. I was provided a 3D-printed copy of an object, the “Connector,” to reverse engineer and prepare documents for. This assignment helped further develop skills with a calipher by featuring difficult to measure internal features.

Please explore more below:

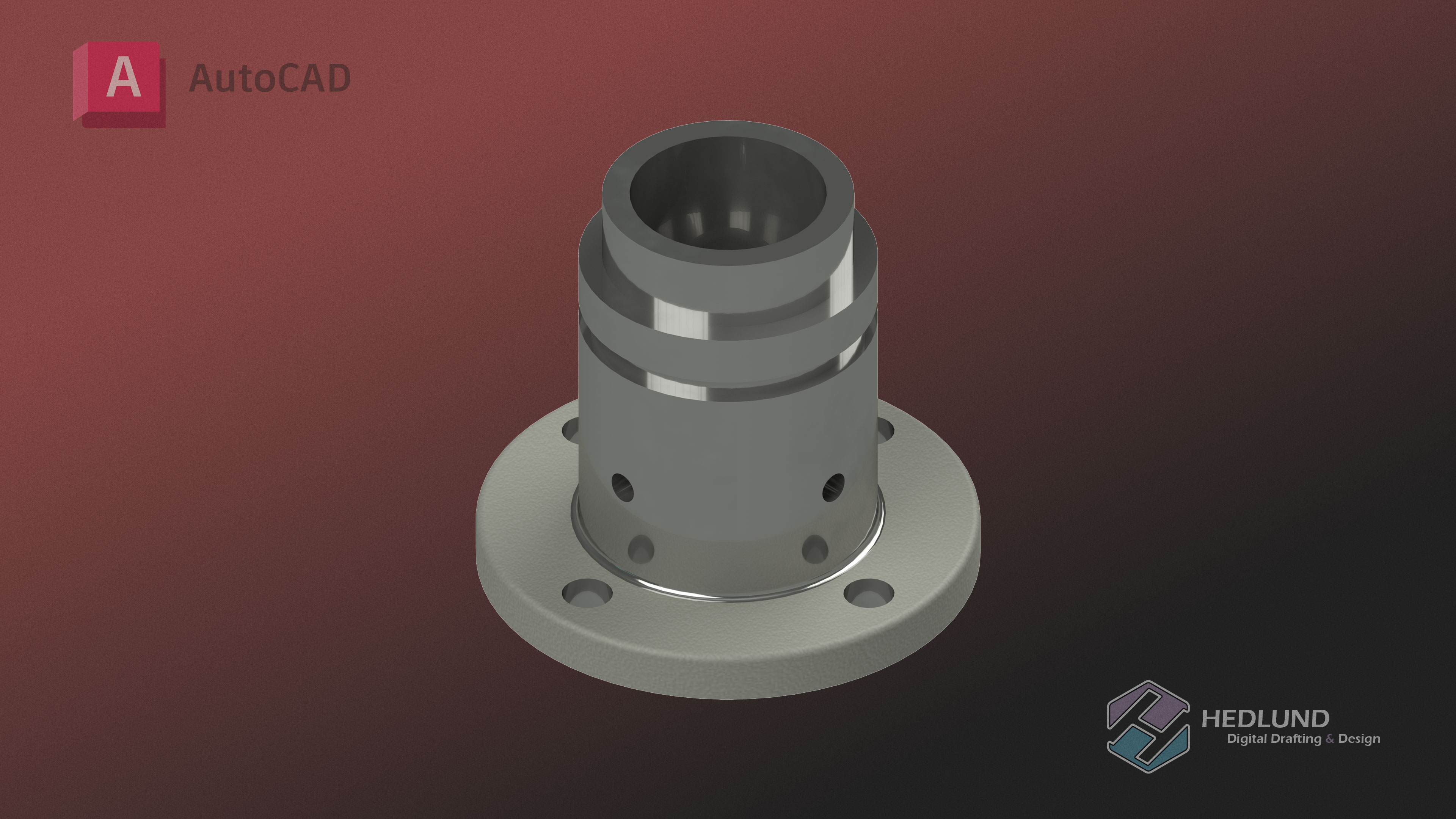

An front view image of the connector.

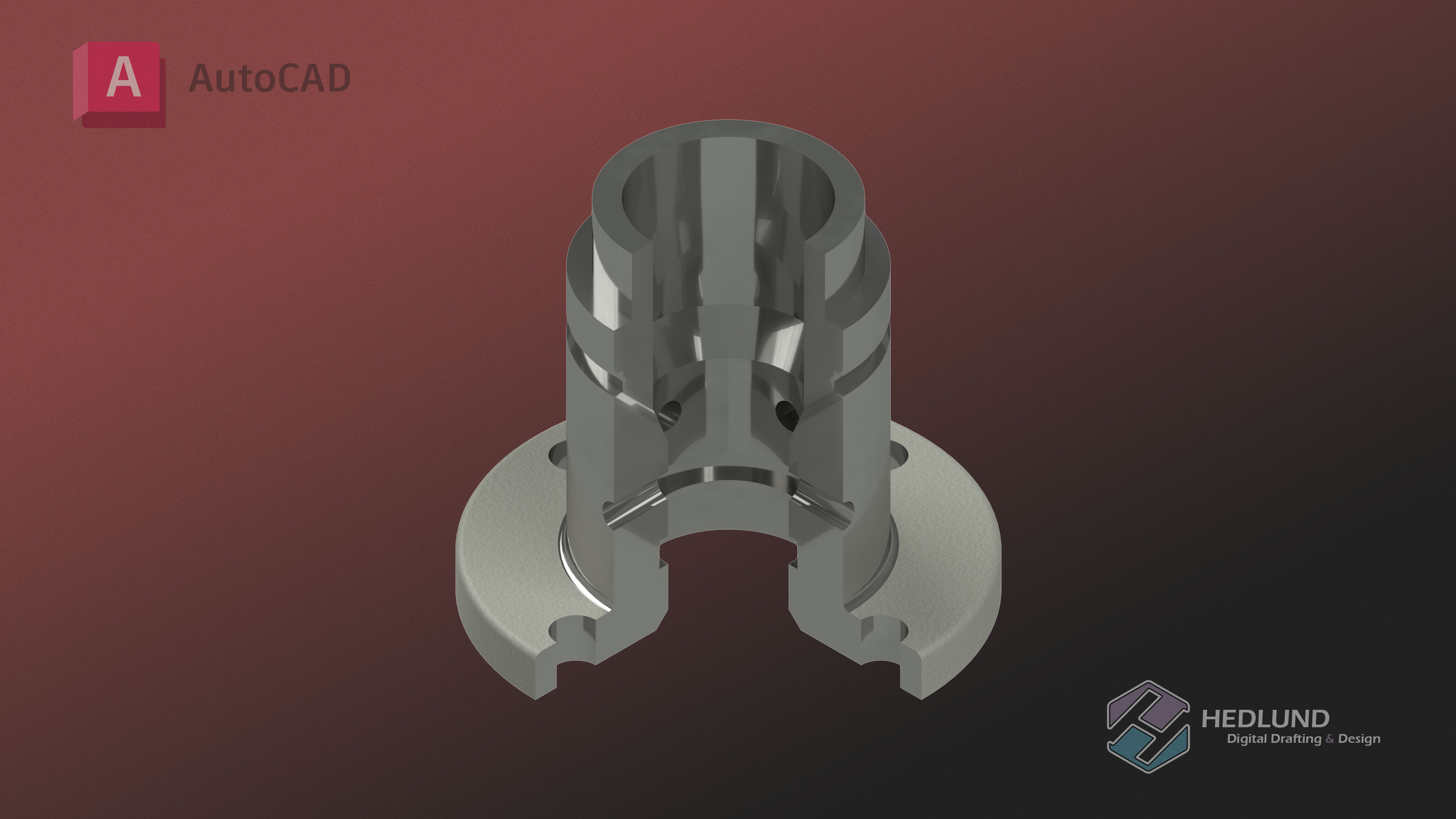

Front View 		A 1/4 section view of the connector.
1/4 Section View

Link to PDF 		An underside view of the 1/4 section view of the connecter.

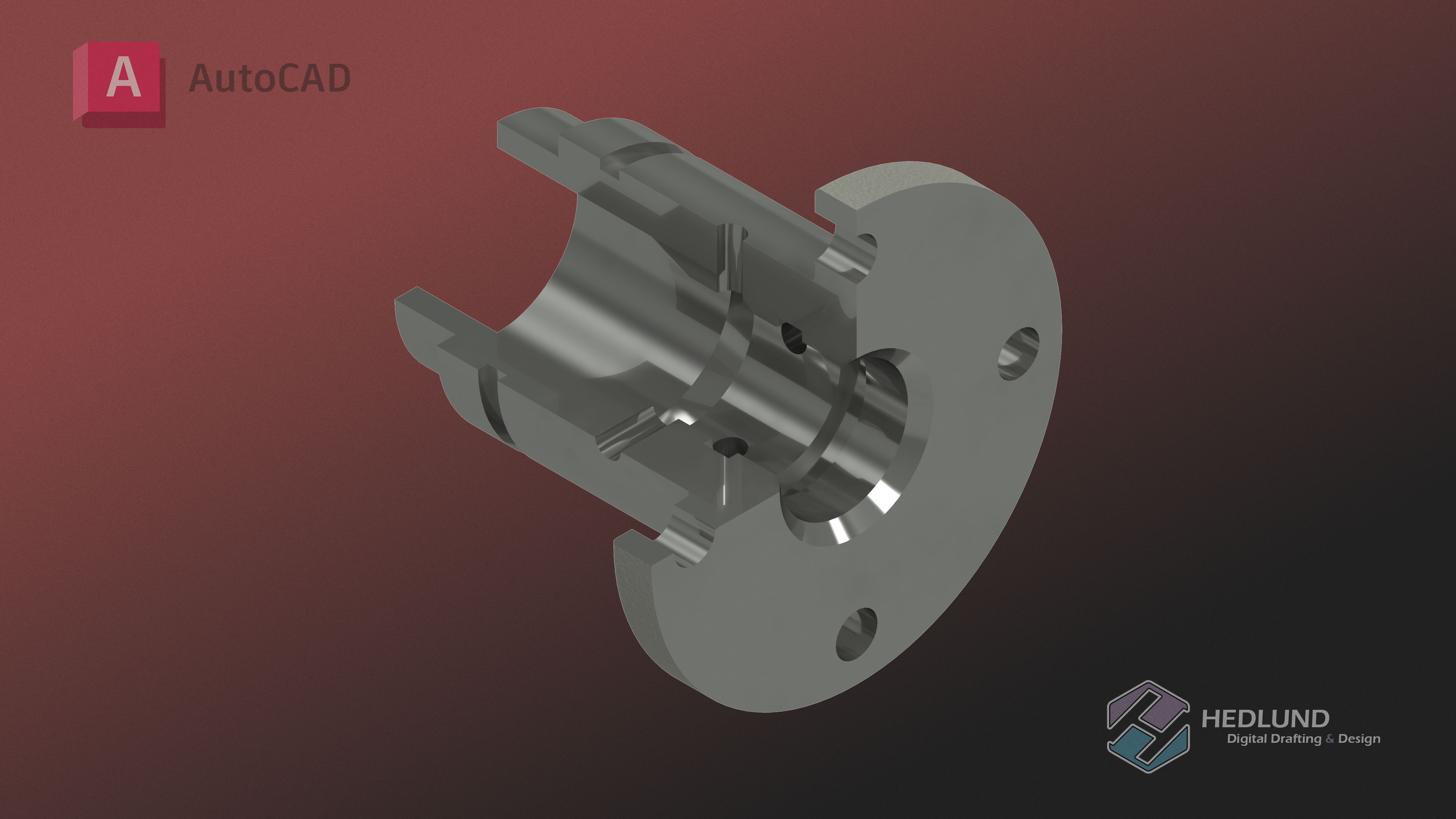

Isometric 1/4 Section Side View
