DDGT121 - Digital Design Graphics Technology 2 Spring 2020

The second of a four course series in the Digital Design Graphics Technology A.S. Degree program. Advanced study in computer-aided drafting (CAD) three-dimensional parametric solid modeling, Boolean operations, CAD rendered images and drawings, advanced reverse engineering of parts and the engineering document revision process. Manufacturing materials and processes. Development of graphics and graphical manipulation for web and print. Development and posting of internet web pages for communication of engineering documents on department website. Students will create their own logo / brand.




Documents: Syallabus and Handouts Top of Page

Download TGC Book
Working Drawing Checklist

DDGT121 Syllabus Spring 2020
DDGT121 Schedule Spring 2020
DDGT121 Assignment List Spring 2020
DDGT121 Reading Participation Spring 2020
DDGT121 ASCENT Reading Participation Spring 2020


JPG
DDGT Company Logo (JPG)
Business Card Horizontal Place Holder (JPG)
Business Card Vertical Place Holder (JPG)


BMP
DDGT Company Logo (BMP)
Business Card Horizontal Place Holder (BMP)
Business Card Vertical Place Holder (BMP)


DDGT 121
Photoshop Layer Order






Assignments Top of Page

Reading Participation Ch19.1-19.6, 19.8-19.8.7
Reading Participation Ch19.8.8-19.11 and Handouts
Reading Participation Ch12
Reading Participation Ch13


SCALES
XREF Shearing Blank
     XREF Assignment Description
     XREF DEMO
     DDGT DETAIL VIEW DEMO
11-55 Wheel Assembly Assignment Description
#1  11-55 Wheel Assembly AutoCAD 3D WD ANSI B
COVER PAGE SCALE 1:4, DETAIL PAGE SCALE 1:2
#2  11-55 Wheel Assembly AutoCAD 3D WD ANSI C
COVER PAGE SCALE 1:2, DETAIL PAGE SCALE 1:1
ANSI C with revisions - visual checkoff
#3  11-55 Wheel Assembly Inventor WD
ANSI B PRINT
#4  11-55 Wheel Assembly Inventor WD
ANSI C with revisions - visual checkoff
Ascent Inventor Intro to Solid Modeling 3A, 3B, 3C, 3D, 3E
Ascent Inventor Intro to Solid Modeling 4A, 4B, 4C
Mandatory Meeting With Instructor - February
Create 10 ideas for logos
Ascent Inventor Intro to Solid Modeling 5A, 5B
Ascent Inventor Intro to Solid Modeling 6A, 6B, 6C
Ascent Inventor Intro to Solid Modeling 7A, 7B, 7C
Ascent Inventor Intro to Solid Modeling 8A, 8B, 8C
Ascent Inventor Intro to Solid Modeling 9A, 9B, 9C
Ascent Inventor Intro to Solid Modeling 10B
Ascent Inventor Intro to Solid Modeling 11A, 11B
Ascent Inventor Intro to Solid Modeling 12A, 12B
Ascent Inventor Intro to Solid Modeling 13A, 13B, 13C, 13D
Ascent Inventor Intro to Solid Modeling 14A, 14B, 14C
Ascent Inventor Intro to Solid Modeling 15A, 15B
Ascent Inventor Intro to Solid Modeling 16A
Ascent Inventor Intro to Solid Modeling 17A, 17B
Ascent Inventor Intro to Solid Modeling 18A
Finalize 1-2 Logos
Ascent Inventor Intro to Solid Modeling 19A
Ascent Inventor Intro to Solid Modeling 20A, 20B
Ascent Inventor Intro to Solid Modeling 21A, 21B, 21C, 21D
Ascent Inventor Intro to Solid Modeling 22A
Ascent Inventor Intro to Solid Modeling 23A
Bring in 3 "Family Photos"
Ascent Inventor Intro to Solid Modeling 25A, 25B, 25C
Ascent Inventor Intro to Solid Modeling 26A, 26B
Ascent Inventor Intro to Solid Modeling 27A, 27B, 27C, 27D
Ascent Inventor Intro to Solid Modeling Appendix C1
Ascent Inventor Intro to Solid Modeling Appendix C2
Ascent Inventor Intro to Solid Modeling Appendix E2
Ascent Inventor Intro to Solid Modeling Appendix E3
Photoshop "Poster"
Mandatory Meeting With Instructor - March
14-35 Drill Press Bracket
Photoshop "Wedding"
Photoshop "Family Photos Retouched"
Photoshop "Vector Logos"
Mandatory Meeting with Instructor
Photoshop "Website Layout"
Photoshop "Your Logo"
Photoshop "Business Card"
Photoshop "Website Header"
Photoshop "Website Button"
Mandatory Meeting With Instructor - April
Reverse Engineering: Connector
      Working Drawing:
           Page 1: 3D Cover Page
      Page 2: Working Drawing of Cast Part
      Page 3: Pattern Drawing of Cast Part
      Reference: 13-48 Connector
Resume Ideas
Portfolio Website


Additional Practice Assignments




Lectures Top of Page

Reference Videos:
2015 AutoCAD 3D Toolbars
2015 AutoCAD Create a CTB - Color Table File for Printing
2015 Inventor Application Options
Inventor Cool Orange Thread Modeler Add On


DDGT121 2020.01.23 Allway Sync Demo 18:56
DDGT121 2020.01.23 11-55 AutoCAD Demo CC 35:44
DDGT121 2020.01.23 11-55 Inventor Demo CC 31:37
DDGT121 2020.01.27 Inventor Wheel Assembly - Derived Components CC 47:17
DDGT121 2020.01.27 Inventor Wheel Drawing CC 17:34
DDGT121 2020.01.28 Reverse Engineering Assignment Review CC 11:38
DDGT121 2020.01.28 Website Meta Data Assigment Review CC 33:57
DDGT121 2020.01.28 Logo Assignment Review CC 27:17
DDGT121 2020.01.29 AutoCAD Revision Demo 53:48
DDGT121 2020.01.29 Inventor Revision Demo 19:28
DDGT121 2020.01.30 TGC Fasteners I 53:41
DDGT121 2020.02.03 TGC Fasteners II 59:06
DDGT141 2020.02.04 TGC Fasteners III 1:10:36
DDGT121 2020.02.10 Photoshop Theory 1:30:46
DDGT121 2020.02.11 Photoshop - Interface, Workspaces, Windows, Settings, Adjustment Layers 1:16:06
DDGT121 2020.02.12 Photoshop - Layers, Masks, Brushes, Poster Start 54:39
DDGT121 2020.02.18 Photshop - Canvas Size, Guides, Background, and Filters 1:26:47
DDGT121 2020.02.19 Photoshop - Clone Stamp, Healing Brush, Content Aware, Selection Tools, and Wedding Start 1:30:58
DDGT121 2020.02.20 Photoshop Flyer - Green Bar, Text, Blending Options 48:17
DDGT121 2020.02.24 Photoshop Wikimedia Logo 1:01:22
DDGT121 2020.02.24 Photoshop - Pen Tool 23:32
DDGT121 2020.02.26 Photoshop - Superman Logo 49:44
DDGT121 2020.02.26 Photoshop - NVC Logo
DDGT121 2020.02.27 Photoshop - Photo Editing Tools 1:27:43
(Includes: Dust N Scratches, Dodge N Burn, Sharpening, Actions, and Wedding Border)
DDGT121 2020.03.02 Photoshop - Contact Sheets 25:00
DDGT121 2020.03.02 Logo for 3D Printer 21:19
DDGT121 2020.03.02 Photoshop - Business Card 55:55
DDGT121 2020.03.03 AutoCAD Template Business Cards Updates 27:20
DDGT121 2020.03.03 NVC Storm Logo - Text on a Path 30:55
DDGT121 2020.03.03 Inventor Template Business Card Updates 20:05
DDGT121 2020.03.04 Photoshop - Flyer Monitors 1:25:36
DDGT121 2020.03.05 Photoshop - Finalize Poster 40:54
DDGT121 2020.03.09 Photoshop - Anti-Aliasing, Gradients, Quick Mask 30:16
DDGT121 2020.03.10 Photoshop - Website Button 17:05
DDGT121 2020.03.10 Photoshop - Website Mockup 35:34
DDGT121 2020.03.11 Ch13 Forming Process I 1:13:58
DDGT121 2020.03.12 Ch13 Forming Process II 1:00:26
DDGT121 2020.03.23 Ch13 Forming Process III 46:30
DDGT121 2020.03.23 Ch12 Materials I 18:14
      Die Forging Process(open and closed die)
      Powder Metallurgy I
      Powder Metallurgy II
      Plastic Injection Molding
      Ultrasonic Bonding and Laminating
      Ultrasonic Staking
      Spin Welding Acrylic - Drill Press
      Spin Welding Acrylic – Lathe
      SpinMELD Friction Spin Welding Steel Pin to Steel Plate
      Cast Iron vs Cast Steel
      Manufacture of Steel by Bessemer Process
      Malleability and Ductility
      Ductility of Metals
DDGT121 2020.03.24 Ch12 Materials II 51:32
      STEEL: From Start to Finish
      Steelmaking
      Steelmaking: Rolling
      The Steel Heat Treatment Process
      Hot Rolled vs Cold Rolled Steel
      How It’s Made Stainless Steel
      Hydromechanical Deep Drawing Dies
      Sintering Metal Process
      Refractory Alloys
      What Makes Gold So Valuable?
      Machining Metals - Choosing the Best Metal for Your Project
      12 Stunning Visualizations of Gold Shows Its Rarity
DDGT121 2020.03.25 Ch12 Materials III 40:12
      What is in a barrel of Crude Oil
      Engineering Plastic - Your Advantages
      Understanding Thermoset Plastics
      What is HDPE? Optional
      What is LDPE? Optional
      What is OTHER? Optional
      What is PET? Optional
      What is PP? Optional
      What is PS? Optional
      What is PVC? Optional
      A Brief History of Rubber
      History of Rubber
      How Its Made Natural Rubber
      From Rubber Tree to Latex to Natural Rubber - Classic Documentary Optional
      How Rubber Moved to Asia
DDGT121 2020.03.30 Inventor Ch1 Introduction to Inventor 46:54
DDGT121 2020.03.30 Inventor Ch2 Creating the Base Feature 6:06
DDGT121 2020.03.30 Inventor Ch3 Additional Sketching Tools I 36:32
DDGT121 2020.03.31 Inventor Ch3 Additional Sketching Tools II 31:24
DDGT121 2020.03.31 Inventor Ch4 Advanced Sketch Editing Tools 31:07
DDGT121 2020.04.01 Inventor Ch5 Sketched Secondary Features 56:31
DDGT121 2020.04.01 Inventor Ch6 Creating Pick and Place Features 44:50
DDGT121 2020.04.02 Inventor Ch7 Organizing Your Drawing With Layers 37:19
DDGT121 2020.04.02 Inventor Ch8 Equations 17:55
DDGT121 2020.04.02 Inventor Ch9 Additional Features 40:07
DDGT121 2020.04.06 Inventor Ch10 Model and Display Manipulation 31:57
DDGT121 2020.04.06 Inventor Ch11 Fixing Problems 24:25
DDGT121 2020.04.06 Inventor Ch12 Sweeps 19:20
DDGT121 2020.04.07 Inventor Ch13 Loft Features 1:06:33
DDGT121 2020.04.07 Inventor Ch14 Duplication Tools 50:53
DDGT121 2020.04.07 Inventor iParts, iFeatures, iAssemblies
15:31 (Optional)
DDGT121 2020.04.08 Inventor Ch15 Feature Relationships 27:47
DDGT121 2020.04.08 Inventor Ch16 Assembly Environment 32:04
DDGT121 2020.04.09 Inventor Ch17 Joints 42:27
DDGT121 2020.04.09 Inventor Ch18 Manipulating Assembly Display 25:33
DDGT121 2020.04.13 Inventor Ch19 Model Information - Computer Crash - Not Available
DDGT121 2020.04.13 Inventor Ch20 Presentation Files 37:52
DDGT121 2020.04.14 Inventor Ch21 Assembly Tools 1:03:42
DDGT121 2020.04.14 Inventor Ch22 Assembly Parts and Features 30:43
DDGT121 2020.04.14 Inventor Ch23 Assembly Bill of Materials 28:04
DDGT121 2020.04.15 Inventor Ch24 Working With Projects 32:47
DDGT121 2020.04.15 Inventor 24 and 25 1:36:18
DDGT121 2020.04.16 Inventor Ch26 Detailing Drawings 50:18
DDGT121 2020.04.16 Inventor Ch27 Drawing Annotations 43:21
DDGT121 2020.04.16 Inventor Ch28 Customizing Autodesk Inventor 16:36
DDGT121 2020.04.22 Internet Theory 1:35:38
DDGT121 2020.04.23 Dreamweaver - Setup, Background, and Favicon Start 2:14:42
DDGT121 2020.04.27 Dreamweaver - Text and Link Styles 2:25:40

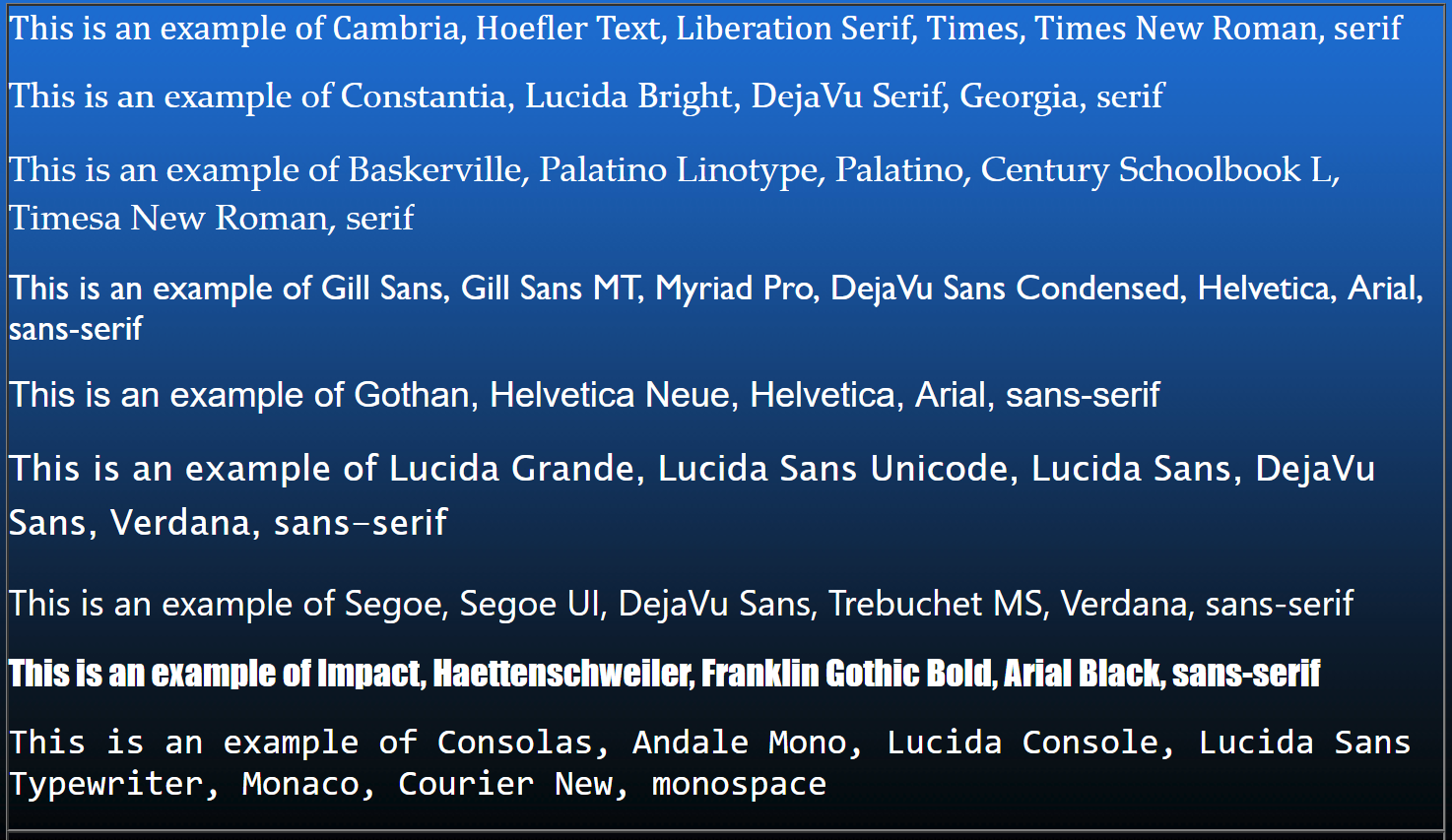

     Font Options Graphic
DDGT121 2020.04.28 Dreamweaver - General Layout and Library Items 2:12:06
     Table Examples (Right click on link and choose "Save Link As")
DDGT121 2020.04.29 Dreamweaver - Navigation Options 2:02:51
     Navigation CSS (Right click on link and choose "Save Link As")
     Navigation LBI (Right click on link and choose "Save Link As")
DDGT121 2020.04.30 Dreamweaver - Finish Library Items 2:12:51
DDGT121 2020.05.04 AutoCAD Content for Website 2:12:26
DDGT121 2020.05.05 Inventor Content for Website 2:01:21
     Rendering For Websites Notes
DDGT121 2020.05.06 PDF to Graphics 6:48
DDGT121 2020.05.07 Dreamweaver - Saving Images for Web and Creating Web Pages 1:44:52
DDGT121 2020.05.07 Student Web Issues 53:59
DDGT121 2020.05.11 Dreamweaver - Text Content 56:50
DDGT121 2020.05.11 Dreamweaver - Gallery Image Content 54:56
     Image Gallery Demo (Right click on link and choose "Save Link As")
DDGT121 2020.05.12 Dreamweaver - Photoshop Gallery Rollover Images 12:38
     HTML Coding Resource - W3SCHOOLS.com
DDGT121 2020.05.14 Website PDF Link 9:07


Subtitles are coming soon!
