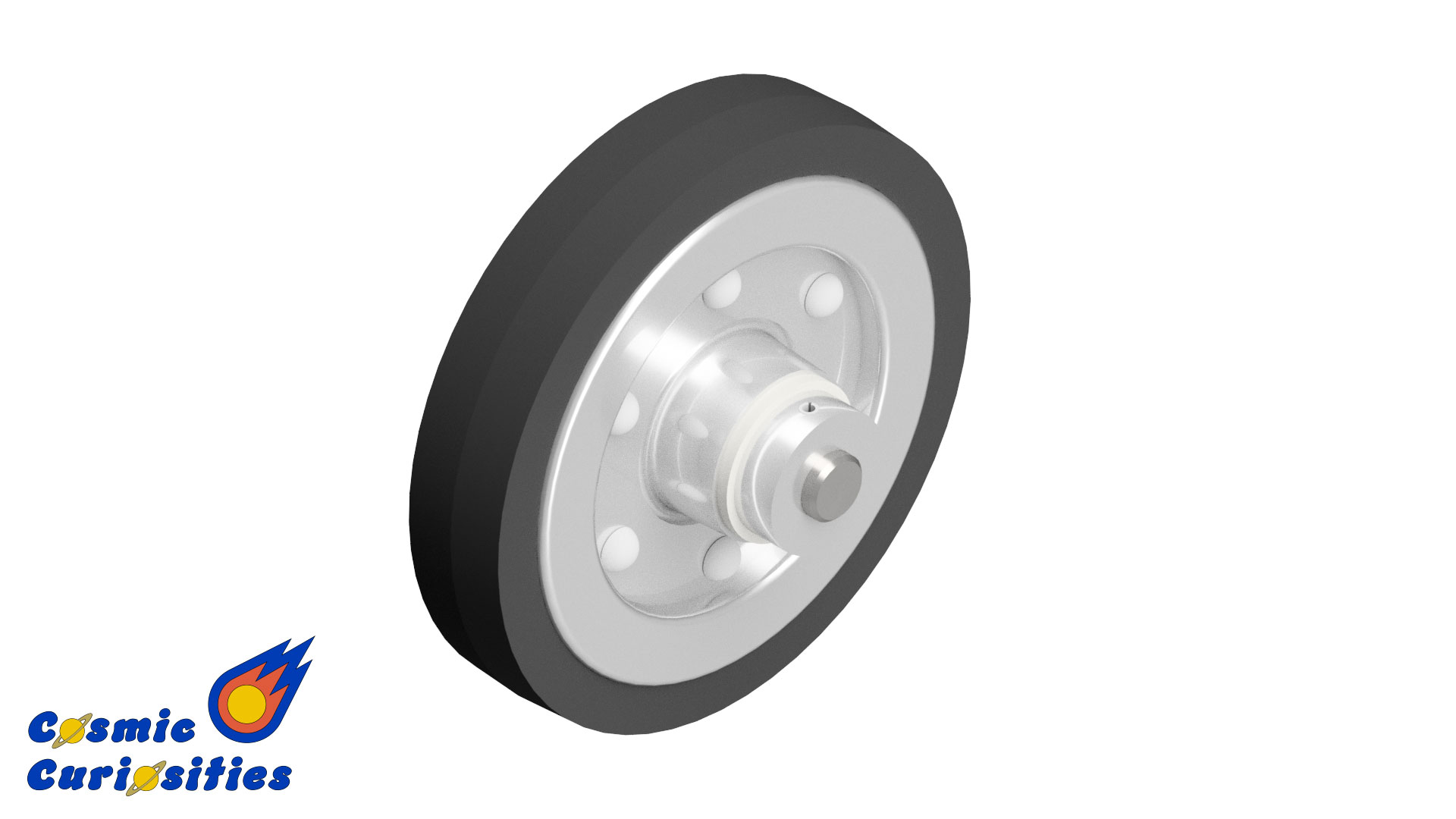

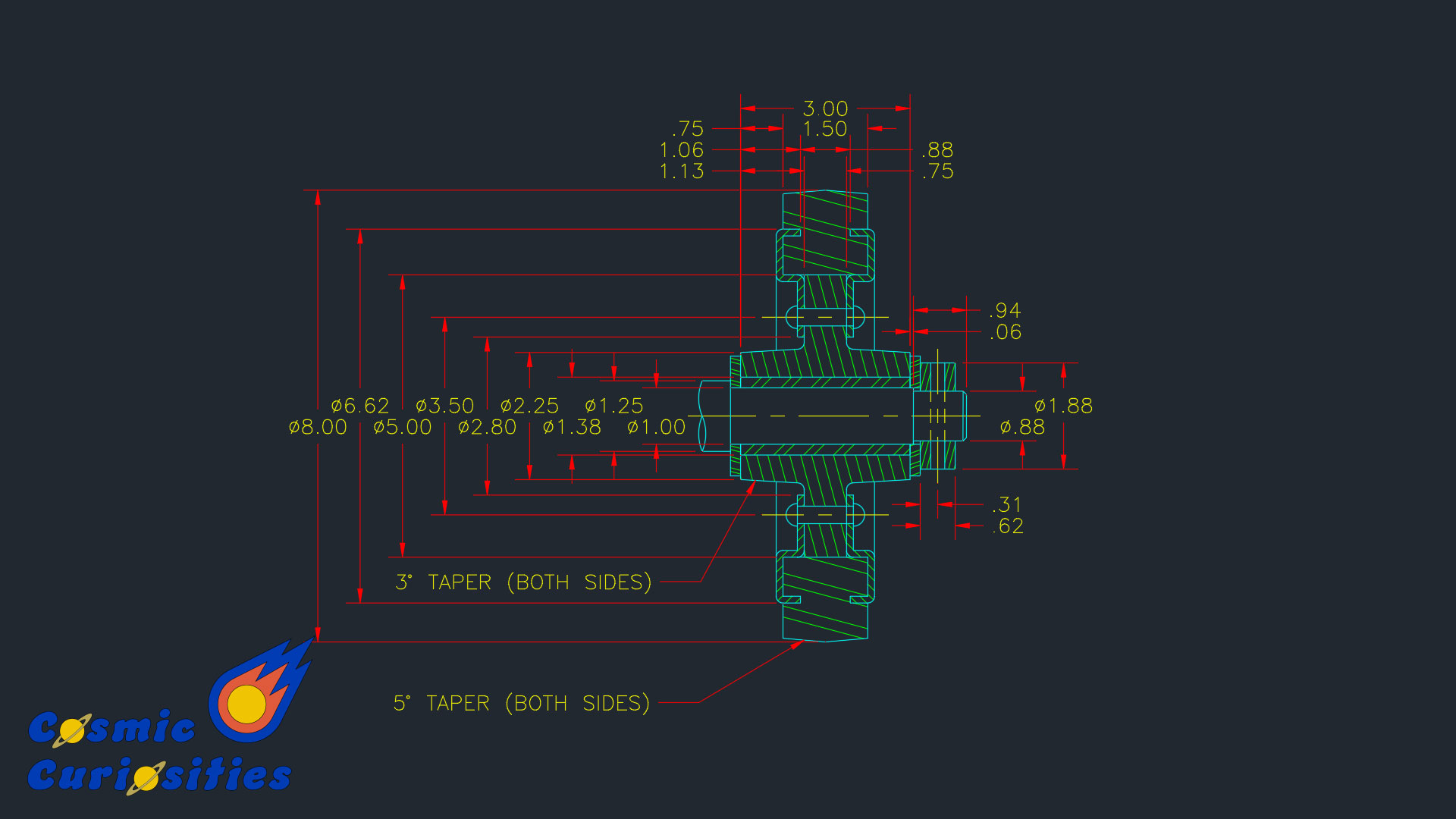

11-55 Wheel Assembly was one of the first assignments of the second semester of DDGT in where I actually had to create a working drawing on an 11" x 17" paper size (ANSI B). Additionally, I had to revise the assembly on a 17" x 22" (ANSI C) paper size. This was also the first assignmnet where I had learn how to properly display revision callouts in a working drawing. As you can see in the PDFs that I have linked under the pictures, revisions require revision tags and a revison table.

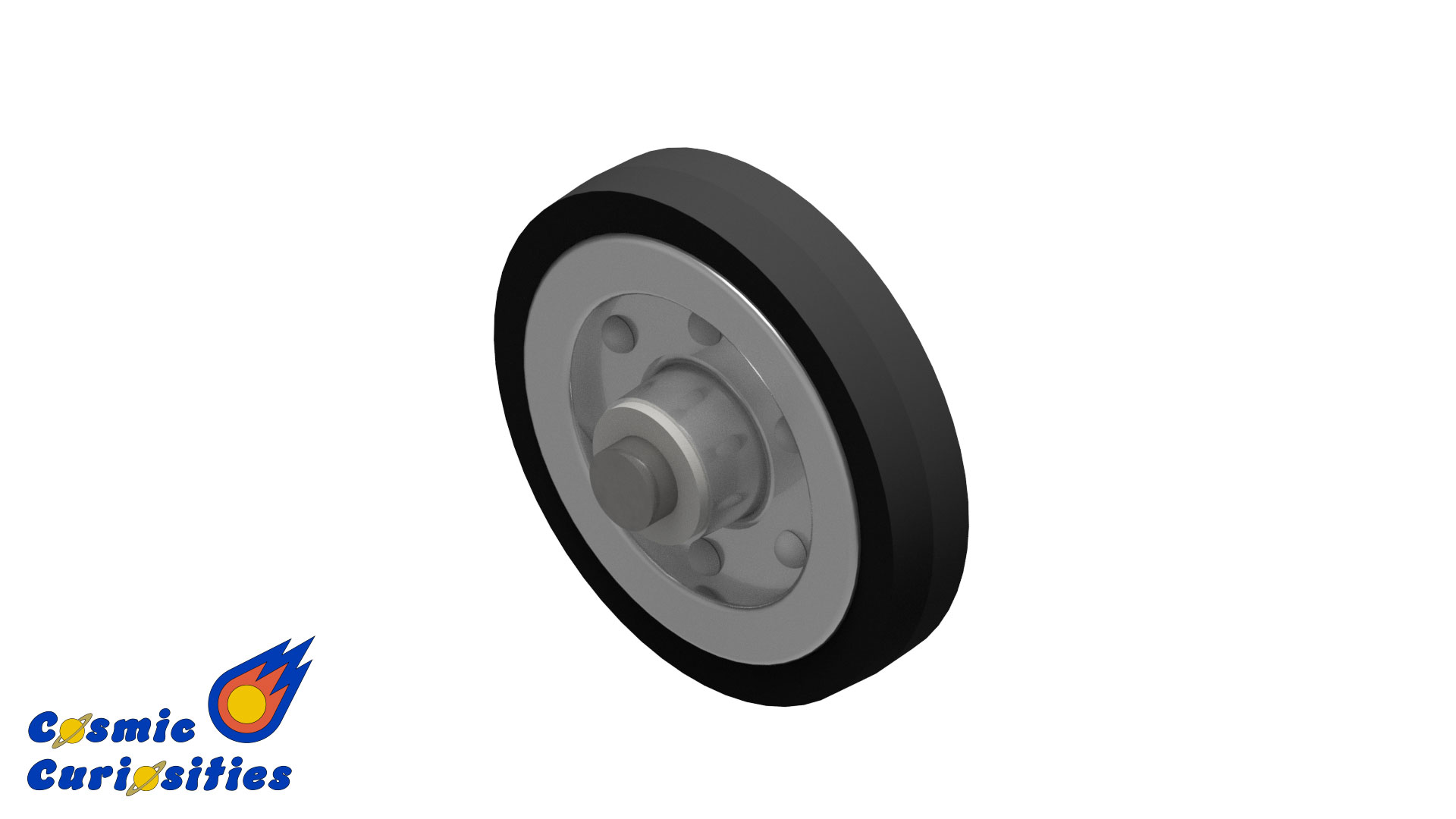

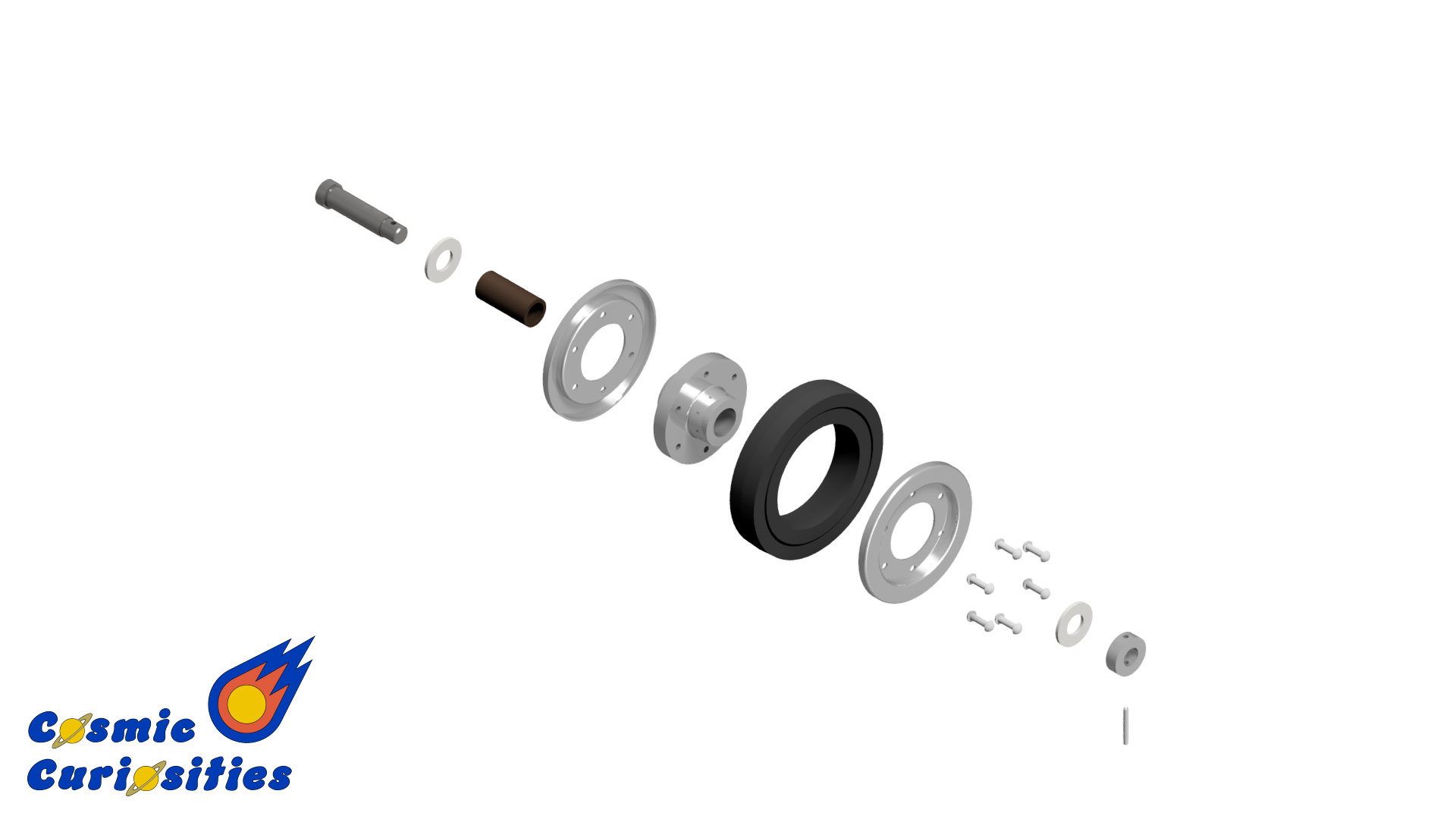

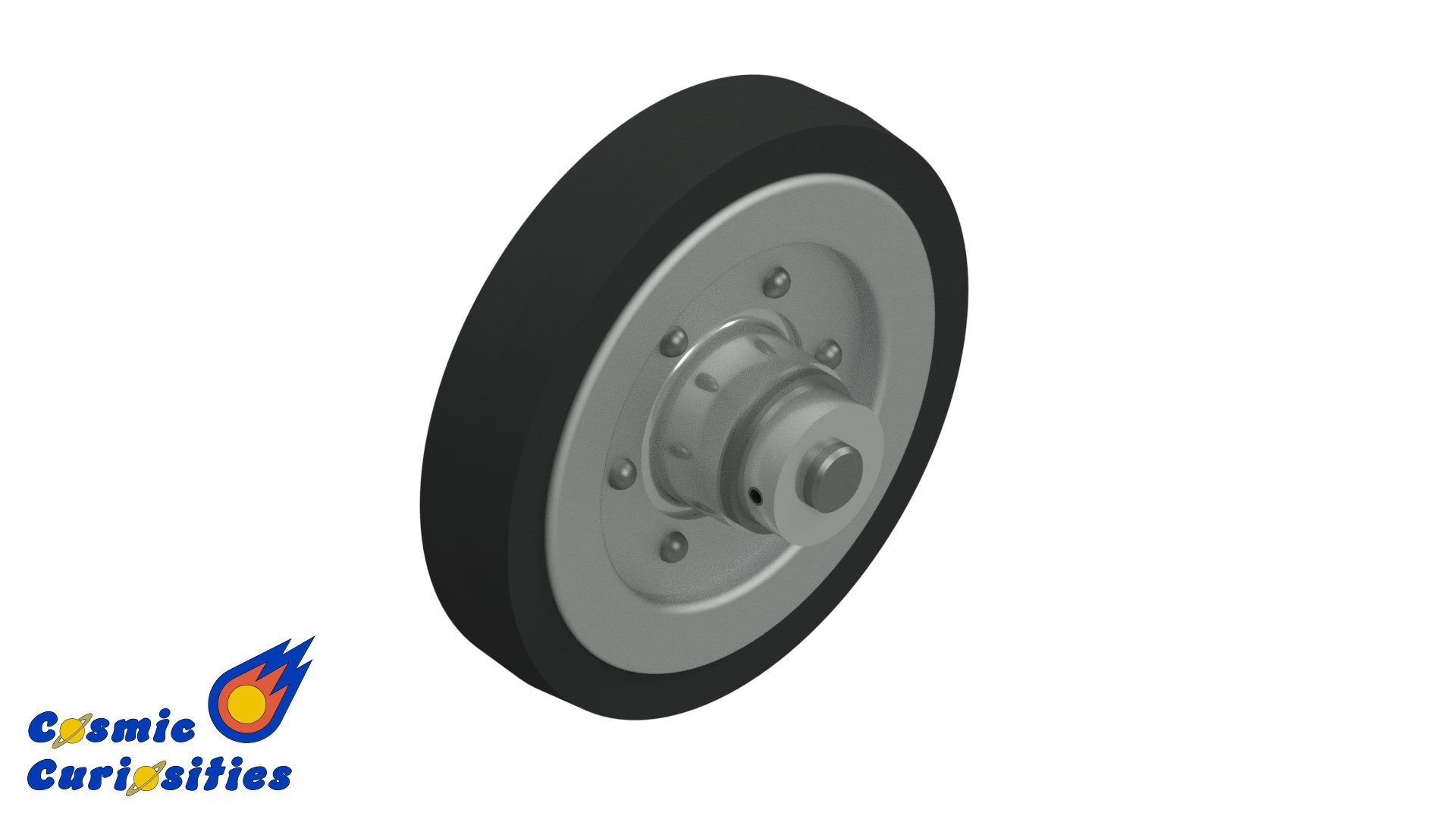

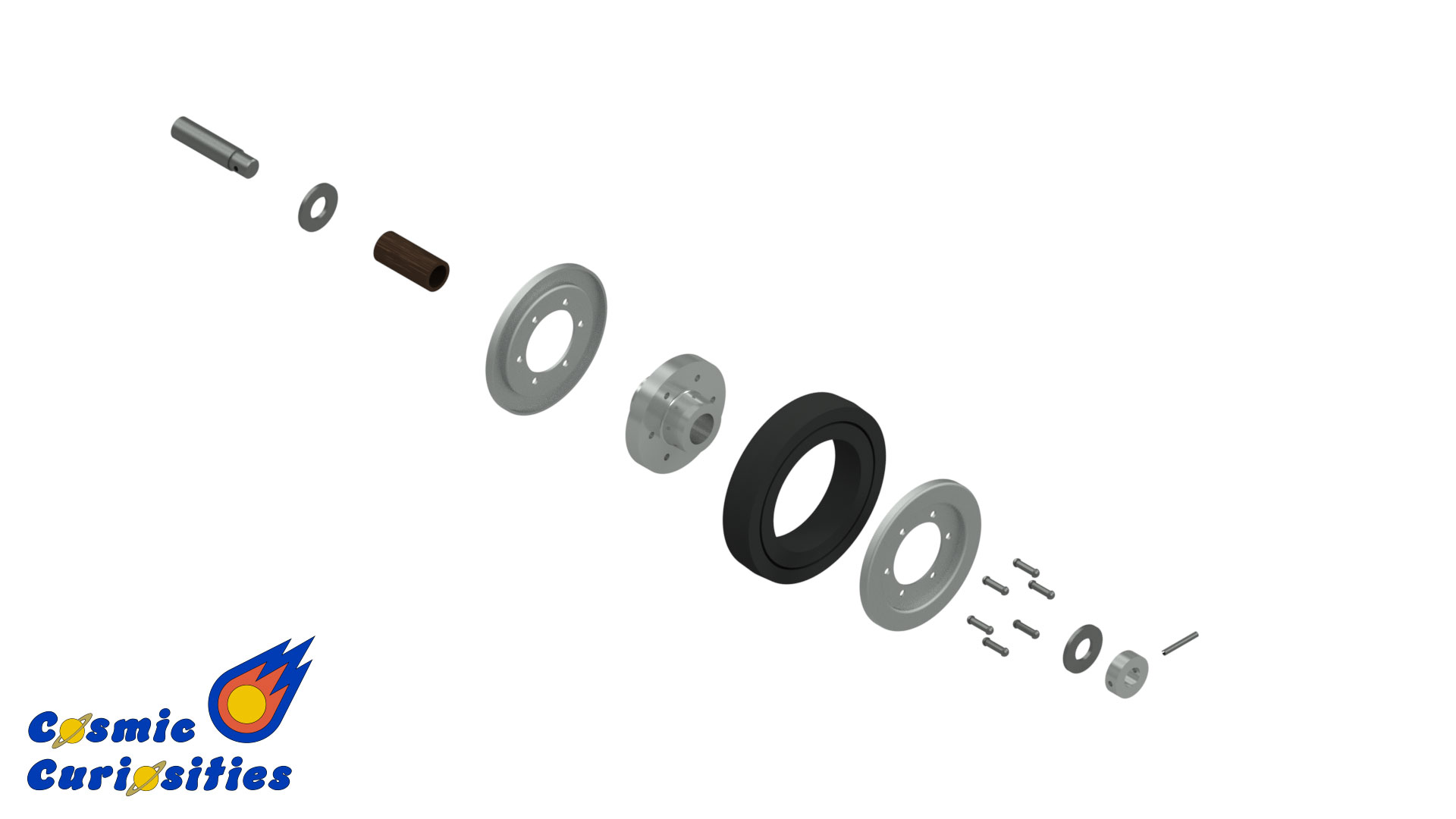

        On top of that, I had to create both working drawings in Inventor as well and export it out as a PDF, totalling four whole working drawings. These assignmets served as an AutoCAD and Inventor refresher, since over the winter break it can be easy to forget the things that we learned in the previous semester. Things like, creating a project file and how to make an exploded view can all be easily forgotten. Perhaps most importantly, this assignment taught me how to create an assembly from an individual part file in Inventor, using derived components.
